WiFi Rfid Panel Reader Access Control
> Card type: EM Card
> Access ways: Card, code, card + code, Mobile APP
> Protocol: Wiegand26 Input/Output
> Searching time: Less than 0.1s after reading card
> Backlight keypad: Easy to operate at night
SHARE
Description

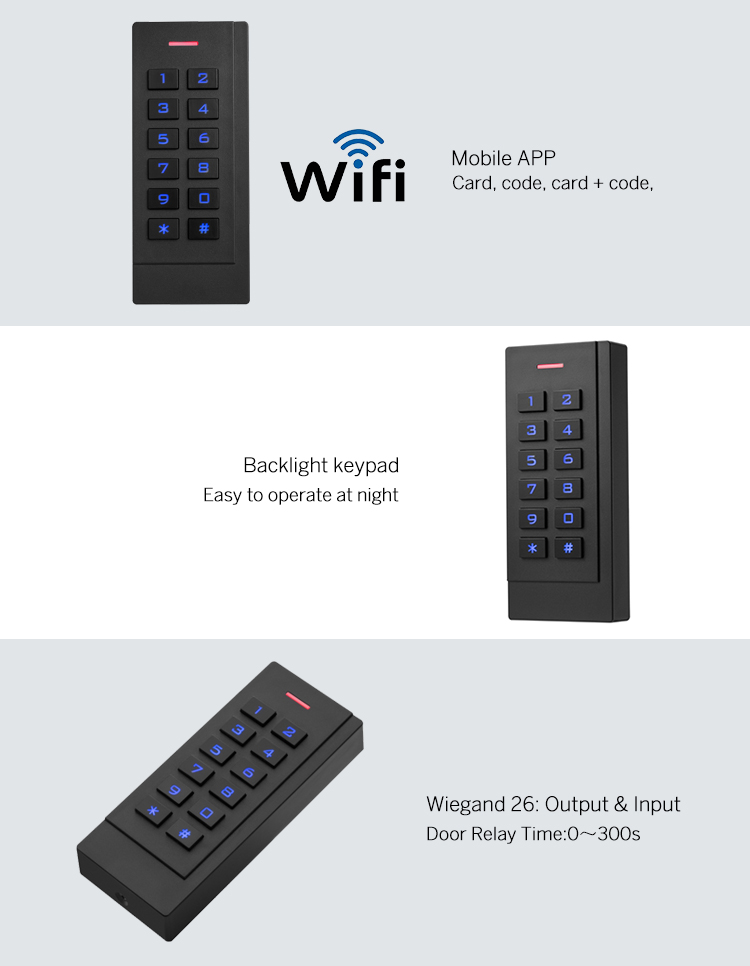

WiFi Rfid Panel Reader Access Control
Model No.: BF1161302265
The device is a WIFI access control keypad and proximity card reader, which supports EM card types, it’s one of the most advanced standalone access control. It adopts unique design, builds-in USA Atmel microprocessor, with strong anti-interference ability, high security and reliability, powerful function, and convenient operation. It’s widely used in high-end buildings, residential communities, and other public places.
Feature
> Ultra-low power consumption: Standby current is less than 30mA
> Protocol: Wiegand26 Input/Output
> Searching time: Less than 0.1s after reading card
> Backlight keypad: Easy to operate at night
> Access ways: Card, code, card + code, Mobile APP
| Card type | EM |
| User Capacity | 10,000 users |
| Operating Voltage | DC 12-24V |
| Card Reading Distance | 2～5cm |
| Standby Current | ≤30mA |
| Lock Output Load | ≤3A |
| Alarm Output Load | ≤20A |
| Door Relay Time | 0 ~ 300s |
| Short-circuit Protection Output Time | ≤100μS |
| Operating Temperature | -40℃～60℃ |
| Operating Humidity | 10%～90% |
| Dimensions | 119x49x19mm |
| Wifi Rfid Panel Reader Access Control | |||
| Model No. | Quantity/Carton | Gross Weight | Carton Size |
| K35EM-W (WIFI) | 100pcs | 19.5KG | 39x25x52cm |
Additional information
| Brand | Bluefield |
|---|
