RFID Standalone Access Control Support 10,000users
> Card Type: EM or MF Card
> Working frequency: 125KHz, 13.56MHz
> 10,000 card users
> Operating voltage: DC12~24V

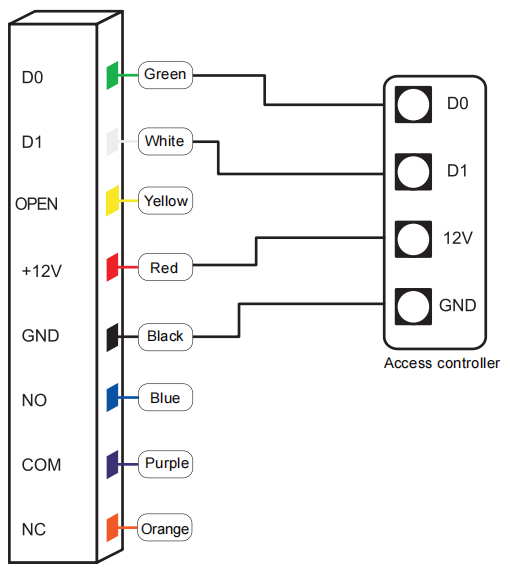

> Wiegand 26/34 Input and Output
> Support admin add card, admin delete card and setting card
SHARE
Description
RFID Standalone Access Control Support 10,000users
Model No.: BF1161302229B
This series of products is a new generation of multifunctional standalone access control. It adopts a new ARM core 32-bit microprocessor design, which is powerful, stable, and reliable. It includes reader mode and standalone access control mode etc.. It’s widely applied to different occasions, such as offices, residential communities, villas, banks, and prisons,s etc.
Product Feature:
> Contains reader mode, the transmission format could be adjusted by users.
> Support admin add card, admin delete card and setting card.
> 10,000 card users.
> Wiegand 26/34 Input and Output

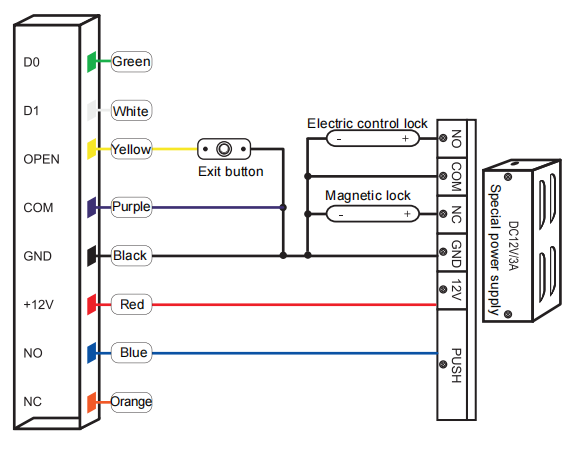

> The unlocking signal adopts NO,NC,COM output of relay.
| Capacity | 10,000 user |
| Operating Voltage | DC 12-24V |
| Operation Current | ≤100mA |
| Standby Current | ≤35mA |
| Maximum Rated Current | ≤1A |
| Door Opening Time | 0-99s(Adjustable) |
| Operating Temperature | -20°C~60°C |
| Operating Humidity | 0%~95% |

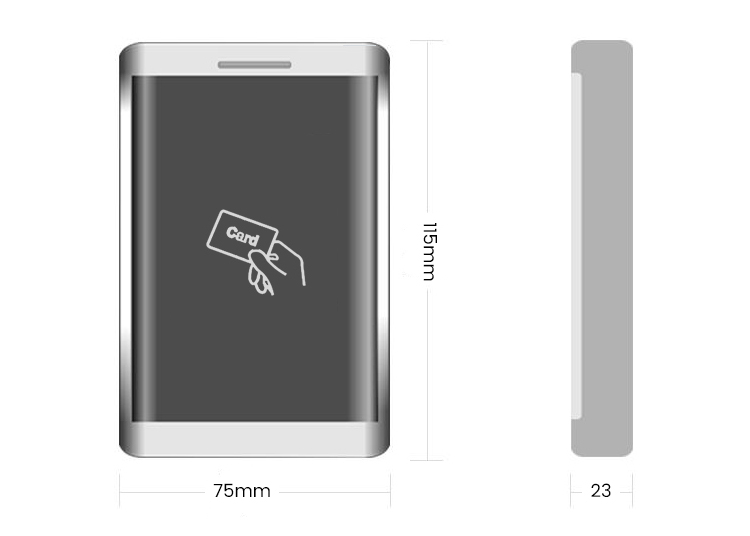

| Dimensions | 115x75x23mm |
This is working with Professional Access Power supply:
This is working with ACB-001,002,004 Network Access Control board.
Additional information
| Brand | Bluefield |
|---|
