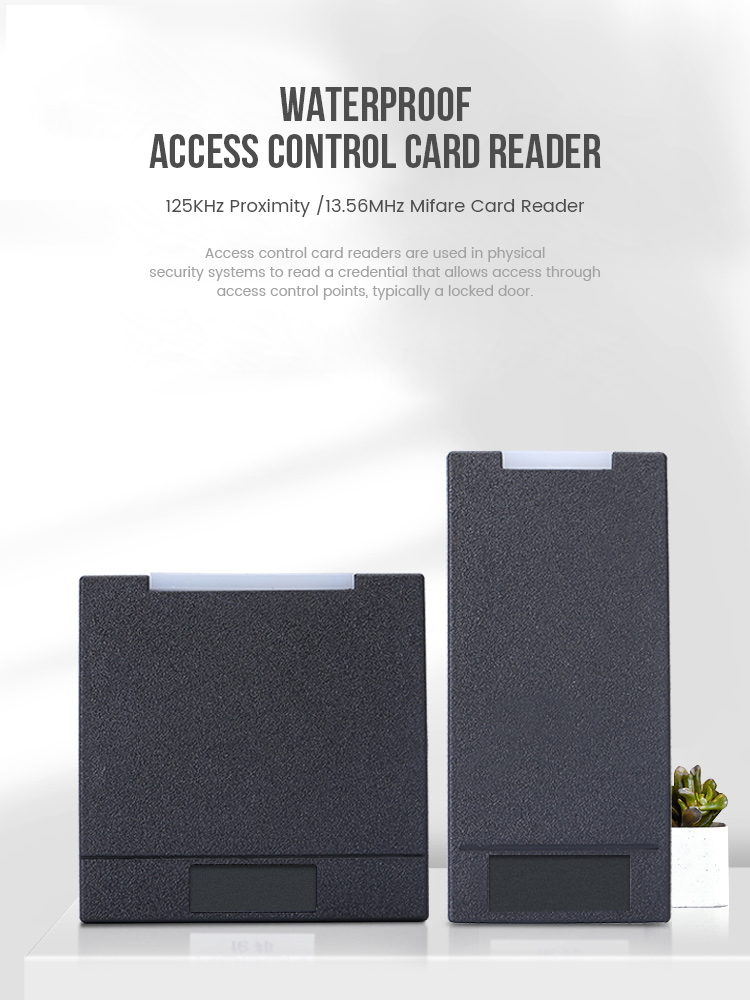

Waterproof Access Control Wiegand RFID Card Reader
> Card type: 125KHz or 13.56MHz Card
> PCD-94EM: 125KHz (WG26 output)
> PCD-94Mifare: 13.56MHz (WG34 output)
SHARE
Description
Waterproof Access Control Wiegand RFID Card Reader
Model No.: BF1161302118/187
Introduction:
PCD-94E: 125KHz Proximity card reader
PCD-94M: 13.56MHz Mifare card reader
Features:
> 125KHz Proximity /13.56MHz Mifare Card Reader
> Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
> 26/34bit Wiegand (default)
> Easy to install on Metal Door Frame or Mullion
> External LED Control
> External Buzzer Control
> Indoor / Outdoor Operation
> Solid Epoxy Potted
> Waterproof IP65
> Reverse Polarity Protection
| Model | PCD-94EM and PCD-94MF |
| Read Range | PCD-94EM: Up to 10CM, PCD-94MF:Up to 5CM |
| Reading Time (Card) | ≤300ms |
| Power / Current | DC 6-14V / Max.70mA |
| Input Port | 2ea (External LED Control, External Buzzer Control) |
| Output Format | 26bit/34bit Wiegand (default) |
| LED Indicator | 2 Color LED Indicators(Red and Green) |
| Beeper | Yes |
| Operating Temperature | -20° to +65°C |
| Operating Humidity | 10% to 90% relative humidity non-condensing |
| Color | Black |
| Material | ABS+PC with texture |
| Dimension(W x H x T)mm | 100X46X20mm |
| Weight | 50g |
| Index of Protection | IP65 |
| Package | 100pcs/Carton |
| Unit weight | 0.12KG/pcs |
| Carton Dimension: | 45X55X20(cm) |
| Waterproof Access Control Wiegand RFID Card Reader | ||||
| Model No. | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
| PCD-94 | 50 PC | 7.14 KG | 6.35 KG | 48x24x31 CM |
Additional information
| Brand | Bluefield |
|---|
