Single Door Wireless Access Kit

Description

Single Door Wireless Access Kit

Model No.: BF1161302242

The SK7 is a single door wireless access control, consists of a wireless & waterproof keypad, a mini controller, and a wireless exit button. TEA + Rolling Code of the encryption algorithm and the split design guarantees higher-secure.

> Waterproof conforms to IP66 (Wireless Keypad)

> Communication frequency: 433MHz

> 600 PIN / card users (100 visitor users + 500 common users)

> PIN length: 4~8 digits

> Communication distance: 50m Max

> Door contact, alarm and doorbell output

> Backlit keypad

> Pulse mode, toggle mode

> Tri-color LED status display

> Ultra-low power consumption (wireless keypad<10uA, Wireless Exit Button: <10uA)

> Supports integrate 1 keypad and 1 exit button, or 2 keypads

User Capacity	600 PIN/card users	(500 common users + 100 visitor users)
PIN Length	4~8 Digits
Card Type	125KHz EM Card
Operating Voltage
Wireless Keypad	3units of AAA batteries
Mini Controller	12V DC
Wireless Exit Button	2032 Lithium battery
Current
Idle Current	Wireless Keypad:	<10uA
	Mini Controller:	<20Ma
	Wireless Exit Button:	<10uA
Working Current	Wireless Keypad:	<80mA
	Mini Controller:	<50mA
	Wireless Exit Button:	<30uA
Communication Frequency	433MHz
Communication Distance	50m Maximum
Relay Contact Load	2Amp Maximum
Environment	Outdoor (Wireless Keypad)
Operating Temperature	-40℃~60℃(-40°F~140°F)
Operating Humidity	10%~9%RH
Physical	ABS Shell

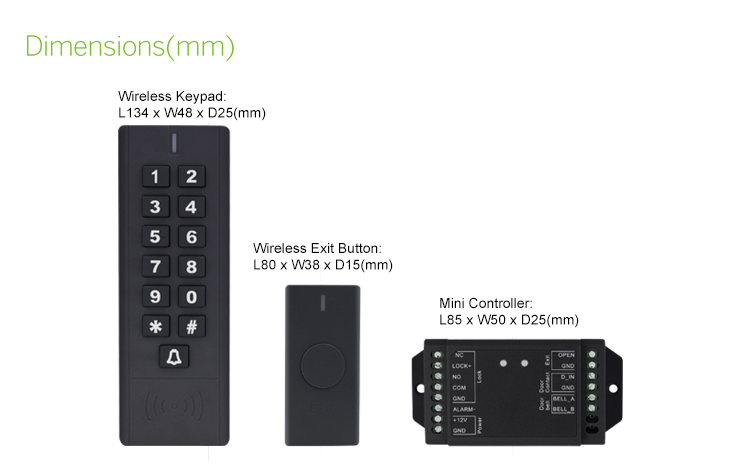

Dimensions	Wireless Keypad:	L134 x W48 x D25(mm)
	Mini Controller:	L85 x W50 x D25(mm)
	Wireless Exit Button:	L80 x W38 x D15(mm)
Unit Weight	Wireless Keypad:	150g
	Mini Controller:	62g
	Wireless Exit Button:	34g
Shipping Weight	300g

Single Door Wireless Access Kit

Additional information

Brand	Bluefield
