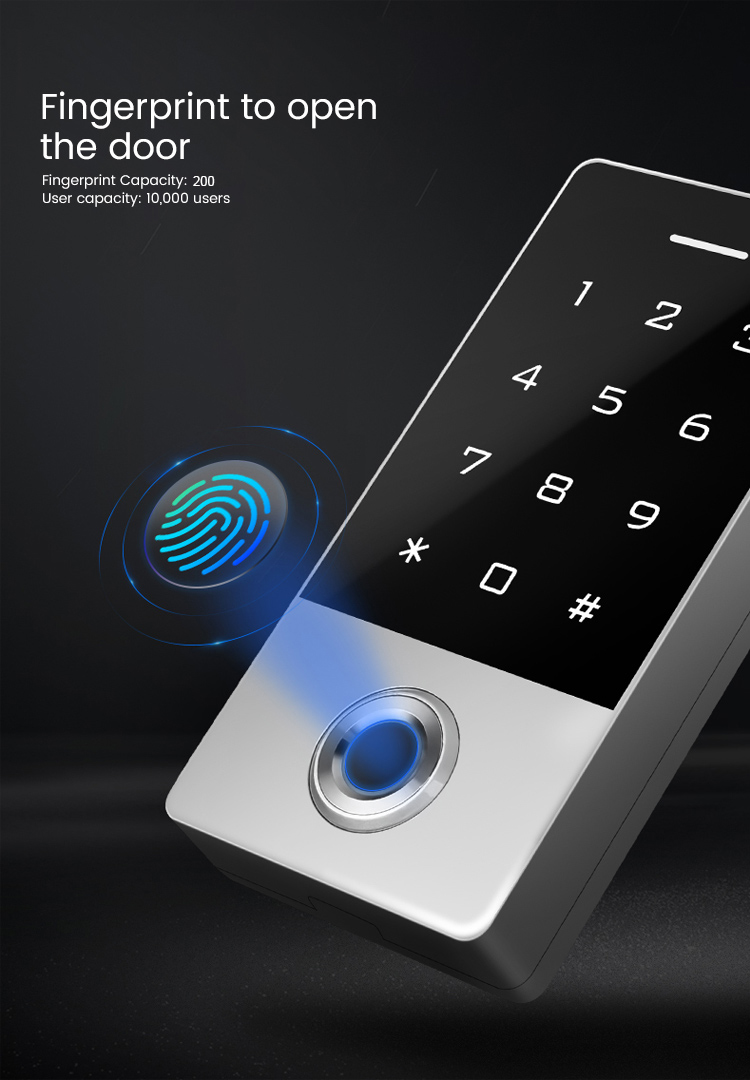

Fingerprint Touch-Screen Standalone Access Control
> Card type: EM, HID, MF, CPU Card
(Factory default: EM 125KHz)
> Metal backlight keypad
> User capacity: 10,000 users
> Dimensions: 139x70x22mm
> Waterproof IP68
SHARE
Description
Fingerprint Touch-Screen Standalone Access Control
Model No.: BF1161302251
This series of products is a new generation of multi-function standalone access control. It adopts a new ARM core 32-bit microprocessor design, which is powerful, stable, and reliable.
It includes card reader mode and standalone touch screen access control mode etc.. Its widely applied to different occasions, such as offices, residential communities, villa, bank, and prison, etc..
Features:
> Read 125KHz EM / HID Card / 13.56MHz Mifare / CPU Card (Factory default: EM 125KHz)
> Metal backlight keypad
> Contains card reader mode. The transmission format could be adjusted by user.
> Supports different access ways: Entry by Card + Code or Entry by multi cards
> Support master added a card and deleted the card
> User capacity: 10,000 users
| Card type | EM / HID / MF / CPU |
| User Capacity | 10,000 users |
| Fingerprint Capacity | 200 |
| Operating Voltage | DC 12-24V |
| Standby Current | ≤35mA |
| Operation Current | ≤100mA |
| Operating Temperature | -40℃～60℃ |
| Operating Humidity | 0%～95% |
| Waterproof | IP68 |
| Dimensions | 139x70x22mm |
| Access ways | Fingerprint, card, code, or multiple combination method to access |
| Waterproof IP68 Fingerprint Standalone Access Control | ||||
| Model No. | Dimension | Quantity/Carton | Gross Weight | Carton Size |
| TF1EM-W | 139x70x22mm | 54pcs | 31.2KG | 55.5x40x39.9cm |
| TF1MF-W | 54pcs | 31.2KG | ||
Additional information
| Brand | Bluefield |
|---|
