Uhf Rfid Passive Reader with 915m Long Distance Access Control Vehicle Logistics Application

Description

UHF RFID Passive Reader with 915M Long Distance Access Control Vehicle Logistics Application

Model No.: BF116130225

> Working Frequency: National standard (920~925MHz), America standard (902~928MHz), or customize other frequency ISO18000-6C(EPC GEN2)

> Frequency Power: 0~30dBm, be adjusted by software

Specification

Working Frequency	National standard (920~925MHz), America standard (902~928MHz), or customize other frequency
Support Protocol	ISO18000-6B, ISO18000-6C(EPC GEN2)
Frequency Hopping	FHSS or fixed frequency set by software
Working Way	automatically reading card at regular time, can set reading card way
Frequency Power	0~30dBm, be adjusted by software
Reading Distance	5-15M
Reading Sensitivity	dual polarization reading
Reading Speed	one label 64 bit ID number < 6ms
Antenna	build-in circular polarization antenna, gain 8dB /build-in linear polarization antenna, gain 12dBi
Interface	RS485, RS232, Wiegand26, Wiegand34, RJ45
Working Voltage	DC12V
Working Status Indication	buzzer
Power	1W
Working Temperature	-20℃ ～ 80℃
Storage Temperature	-40℃ ～ 125℃
Working Humidity	20％ ~ 95％ (no condensing)

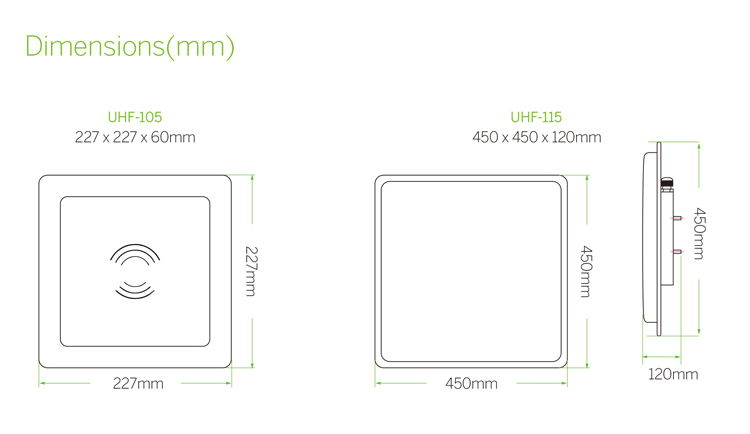

Dimension	450 × 450 × 120mm
Weight	9.5KG

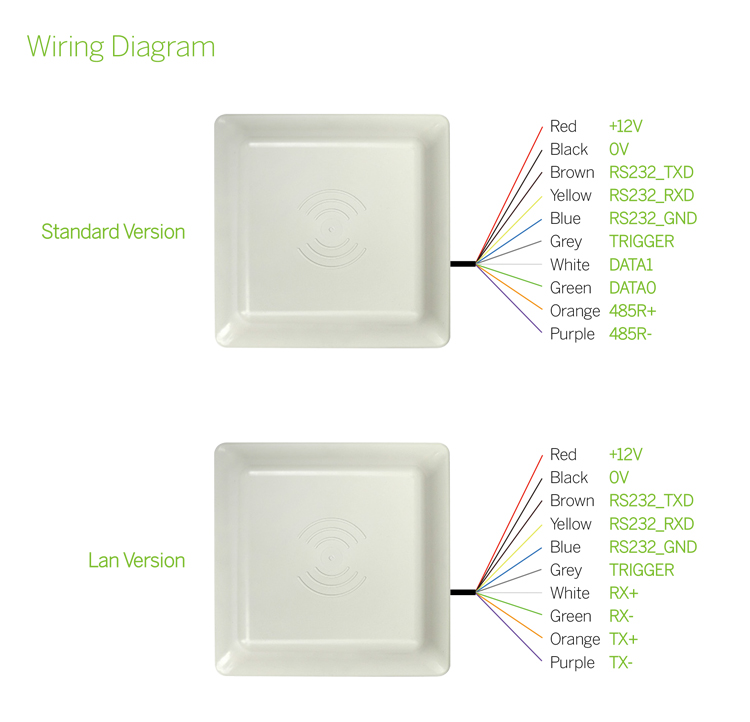

Signal Definition:

Name	Cable Color	Function
DC+12V	Red	+9V～15V positive
GND	black	Negative
TXD	brown	RS232 signal output (PIN2)
RXD	Yellow	RS232 signal input (PIN3)
GND	Blue	RS232 grounding (PIN5)
Triger	Gray	Trig pin
DATA0/485A＋	Green	Wiegand data 0 or 485 interface positive port
DATA1/485B－	White	Wiegand data 1 or 485 interface negative port

UHF RFID Passive Reader

Uhf Rfid Passive Reader with 915m Long Distance Access Control Vehicle Logistics Application
Model No.	Quantity/Carton	Gross Weight	Carton Size
UHF-115	2PCS	19.2KG	63X51X51cm
UHF-115	4PCS	38.4KG	63X51X51cm

UHF RFID Passive Reader

Brand	Bluefield
